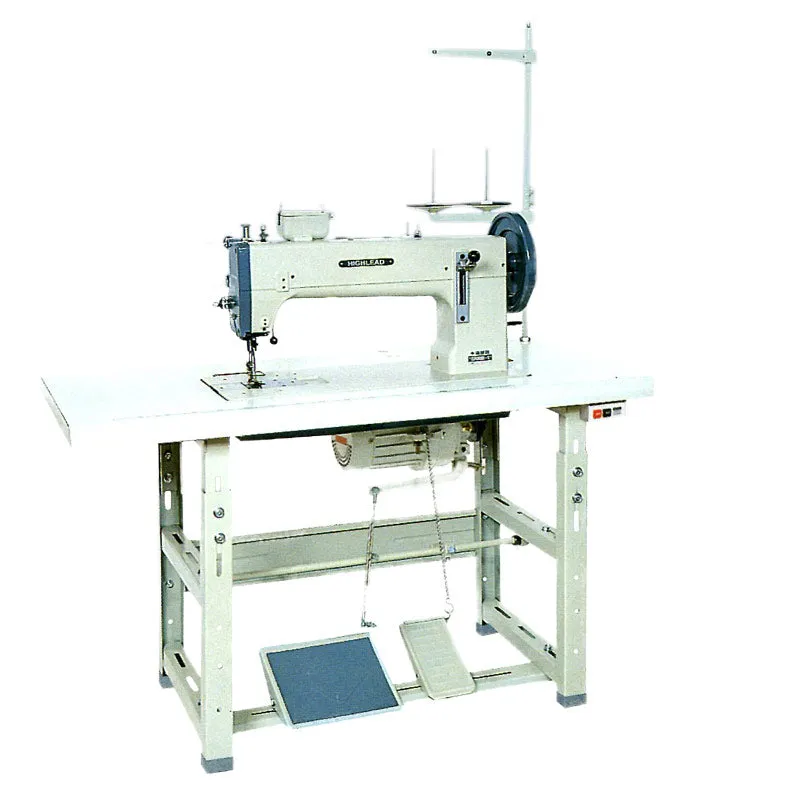

Highlead GA0688-1 | ||
Max Sewing Speed | 800 rpm | |
Stitch length | 0-15 mm | |
Needle bar stroke | 56 mm | |
Thread take-up lever stroke | 96mm | |
Presser foot lift | By hand | 13 mm |
by knee | 20 mm | |
Needle Size | DY x 3 26 # | |
Shuttle Hook | KSP-204N | |
Lubrication | Manual | |
Motor | Servo Motor |

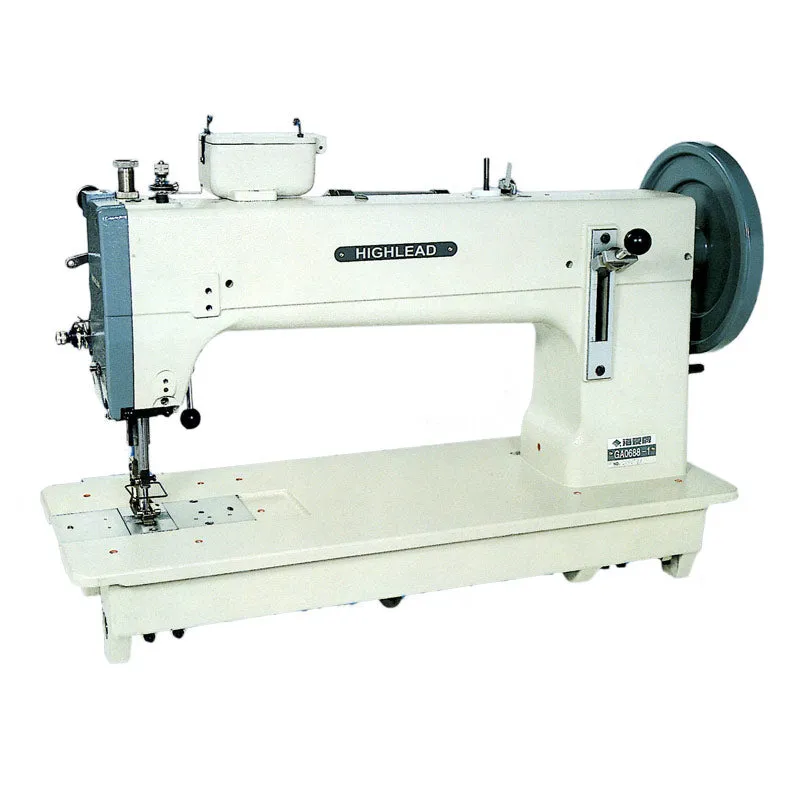

An extra heavy duty flat bed compound feed lock-stitch machine, the GA0688-1 is designed to sew multiple heavy weight materials easily and efficiently. The large shuttle hook and large capacity bobbin offer efficiency in operation. The bobbin winder is on the top of the machine head for easy access. The presser foot lift is adjustable up to 20 mm (.8 inches) thereby allowing it to be used in the production of handbag handles, baseball gloves, sports apparatus, safety bags, tents, seat cushions, carrying cases and other heavy and hard to sew items.
Specifications
